WiFi Audio Wall Amplifier 7 Inch Smart Home Stereo Sound System
WiFi Audio Wall Amplifier 7 Inch Smart Home Stereo Sound System
Item heading
Item heading
Item heading
Item heading
WiFi Audio Wall Amplifier 7 Inch Smart Home Stereo Sound System
item
|
value
|
Certification
|
ce, RoHS, FCC
|
Brand Name
|
SURPASS
|
Model Number
|
SP-PW7825+16PCS CR310
|
Type
|
Home Amplifier
|
Channels
|
8 (7.1)
|
Place of Origin
|
China
|
Type
|
Sound System
|
Name
|
Smart Home Audio
|
Maximum Power Per Channel
|
25W
|
Power Output
|
8*25W
|
Operation system
|
Android 5.1 system
|
Power
|
AC220V(50HZ) allow 110V-250V
|
Main screen size
|
7inch HD touch screen
|
Speaker
|
5'' Coxial Ceiling Speaker
|
Amplifier Installation Size
|
175*110*60mm
|
Amplifier Size
|
185*132*11mm
|
WiFi Audio Wall Amplifier 7 Inch Smart Home Home Stereo Sound System 8channels Speakers
• Power Supply: AC220V(50HZ) compatible 90V-250V
• Load: 4-8Ω
• RMS Output Power: 8x25W
• Audio S/N Ratio: ≥98dB
• Audio Zone: 2 zone for audio
• Zone Volume Control: 2 zones
• Wi-Fi: 2.4G up to 20 meters
• Infrared Remote Control Distance: up to 10 meters
• BT Distance: Up to 10 meters
• BT Version: 5.0
• RAM: 1GB/2GB
• ROM: 8GB/16GB
• Display: 7 inch IPS Display
• Resolution: 1024*600
• Audio Input: 1 group
• Audio Output: 1 group
• Wire Box Size: 181*114*70mm

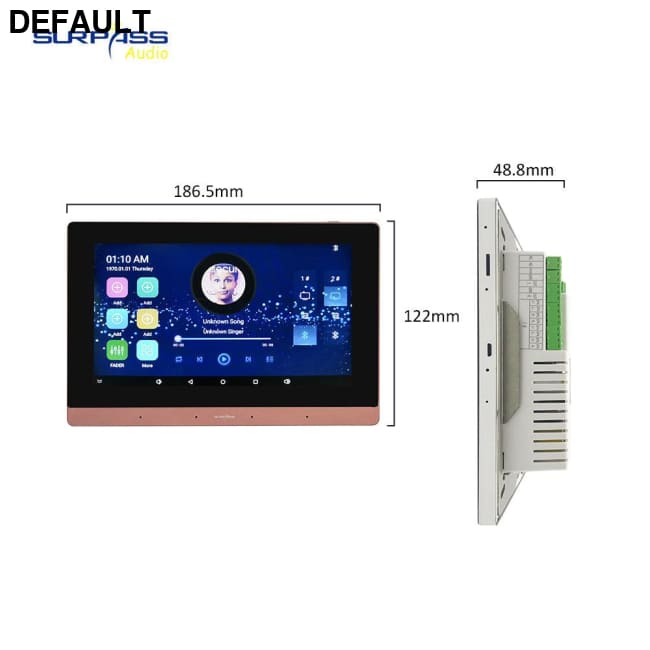

• Dimension: 186.5*122*48.8mm
Aluminum Cylinder Shell Fashion In-ceiling Speaker 8Ohm 10W For Hotel/School/Restaurant/Retail/Home Background Music
Sound Quality 8Ohm 10W Bathroom Moisture-proof Aluminum Can Fashion In-ceiling Speaker Specifications:
Power
|
10W
|
Impedance
|
8Ω
|
Installation Cutout Size
|
Φ95-100mm
|

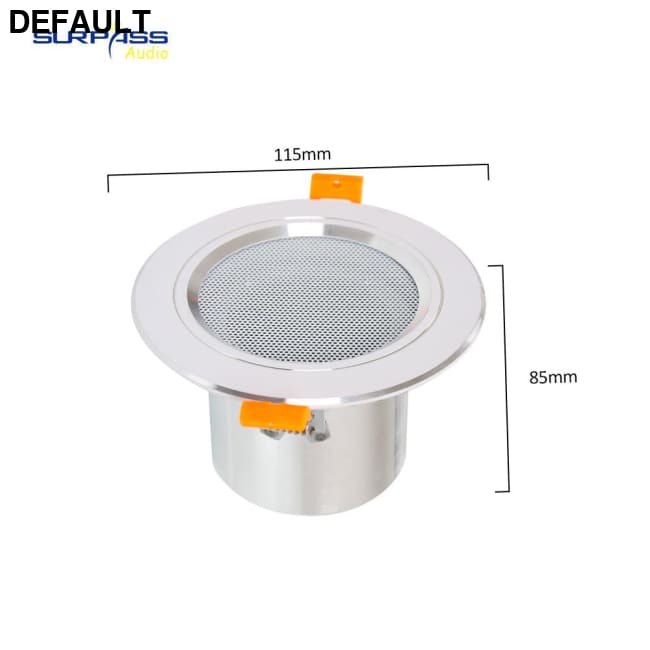

Product Size
|
Φ115x85mm
|
Net Weight
|
189g
|
Gross Weight
|
250g
|

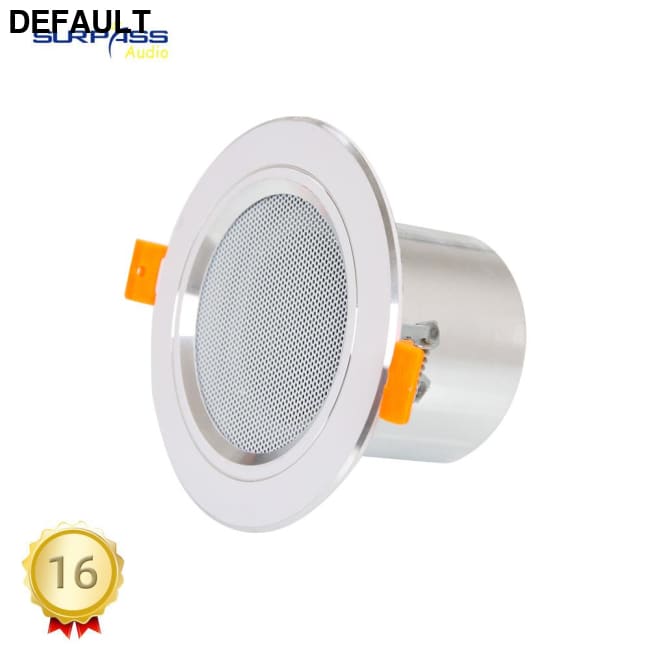

• 3'' Full range speaker driver
• Aluminum cylinder shell
• Mini size, big sound
• Suitable for home/hotel/retail/restaurant etc. background music playing
• Need to connect to amplifier by speaker cable
Package include:

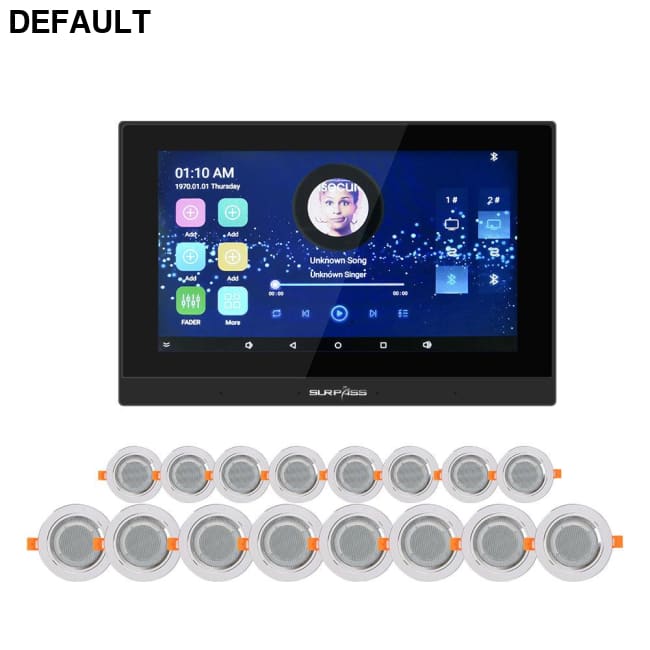

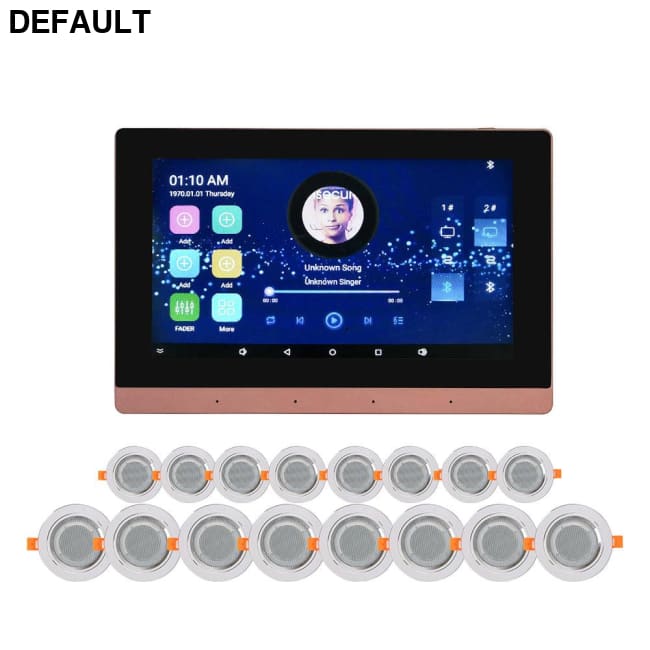

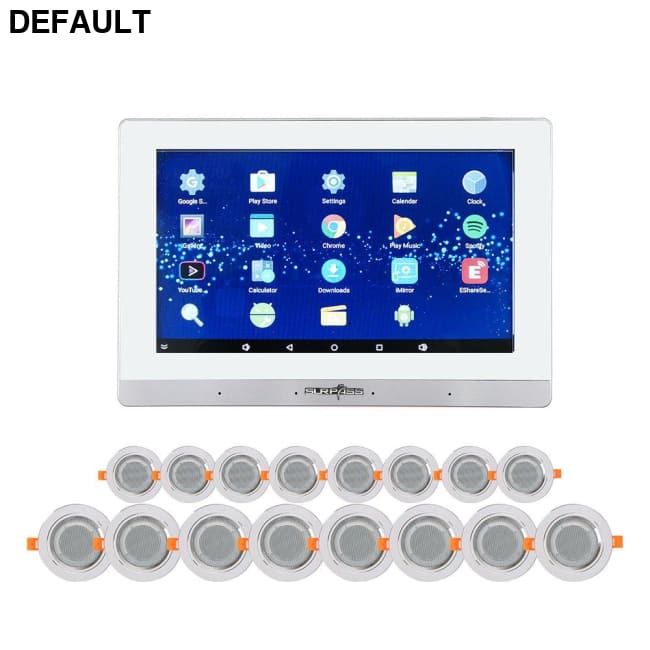

1. amplifier*1 (model number:SP-PW7825)
2. ceiling speaker * 16(model number:SP-CR310)
3. remote control*1
4. mounted box, bracket and screw
Smart Android Wall Amplifier Features:
1. The device is for AC90-250V, please install and debug under the guidance of professionals.
2. Please read this manual carefully and follow the installation instructions strictly.
3. Please check the binding posts carefully for speaker cables, power cables, and audio input cables.
4. Make sure that all connecting lines are accurate before turning on the device.
5. Please do not modify, dismantle, repair or upgrade the device by yourself. 1GB/2GB.
6. When not using the main unit for a long time, please turn off the main power switch.
