DC 12V/24V Single-Channel Wireless Remote Control Switch |

Wireless Control. One Channel. Zero Hassle.

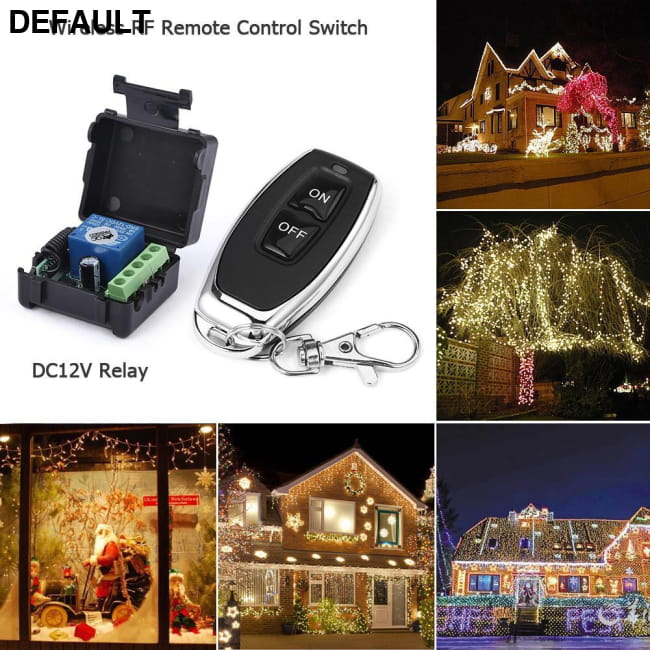

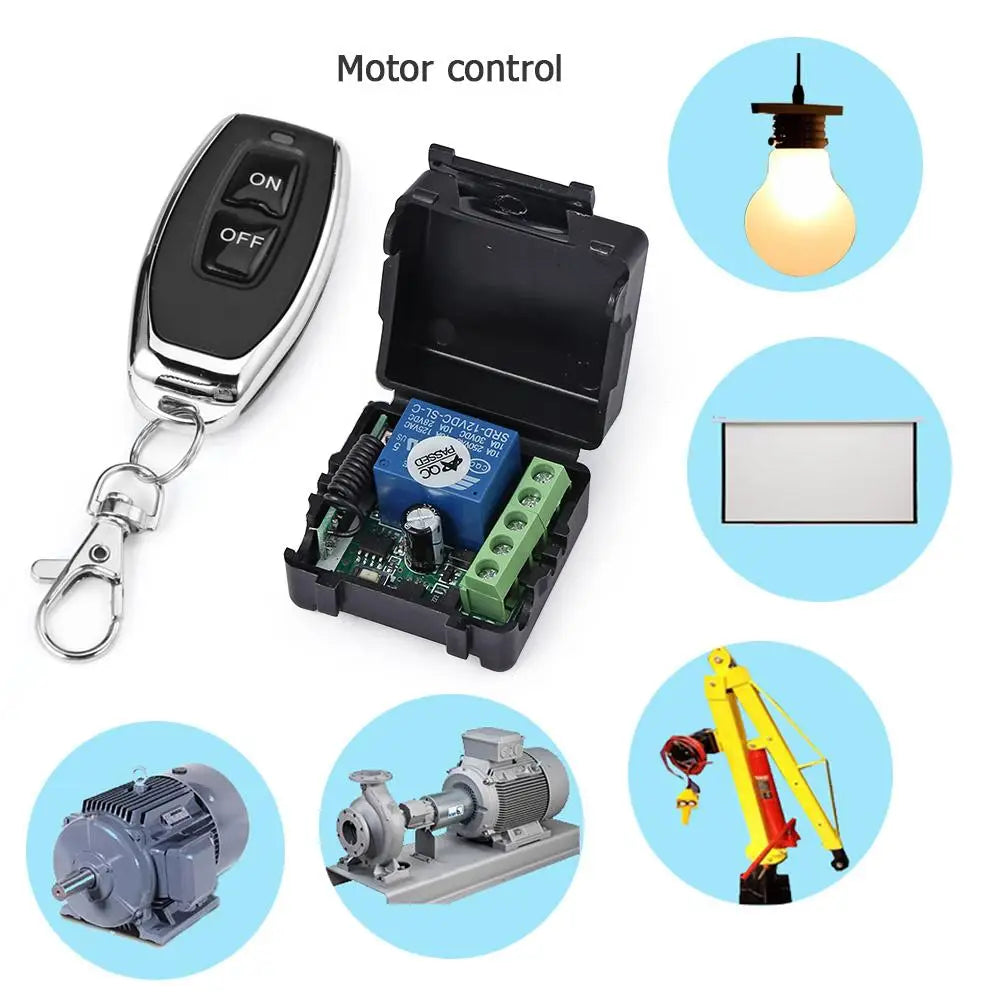

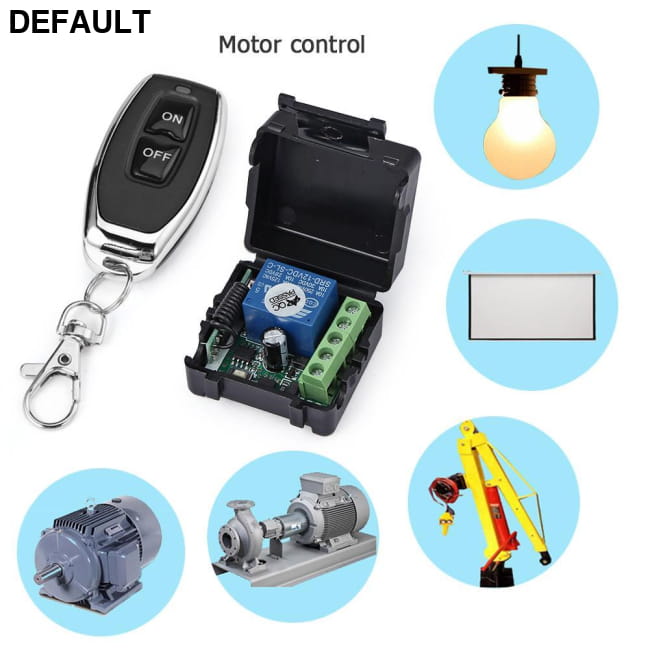

This compact single-channel wireless remote control switch lets you trigger a relay output from a distance — no wiring runs, no manual switches. Operating on either 315MHz or 433MHz frequency with intelligent learning-type code pairing, it’s compatible with a wide range of 12V and 24V car and industrial applications. Inching mode operation means it activates on press and deactivates on release, ideal for momentary control applications.

Key Features

• DC 12V/24V Operation — compatible with standard automotive and industrial power systems
• 315MHz / 433MHz Dual Frequency — select your preferred frequency for your environment (default: 315MHz)
• Intelligent Learning-Type Pairing — easy code pairing without manual DIP switches
• Inching Mode — relay activates while button is held; releases on button release
• Single Relay Output — clean signal for one-channel control applications
• Output Current: Inductive 3.5A / Resistive 6A — handles a range of load types
• Receiving Sensitivity: -105dBm — reliable long-range signal reception
• Wide Operating Temperature: -30° to +70°C — reliable in extreme conditions

Specifications

• Voltage: DC 12V/24V | Frequency: 315MHz (default) / 433MHz
• Mode: Inching | Pairing: Intelligent Learning | Output: 1 Relay
• Current: Inductive 3.5A / Resistive 6A | Sensitivity: -105dBm
• Temp: -30° to +70°C

In the Box

• Switch Controller ×1
