SPECIFICATIONS

Application: Karaoke Power Amplifier,Stage Performance,Concert,KTV

Brand Name: NONE

Certification: CE

Channel: 4 Channel Power Amplifier

DIY Supplies: Electrical

Feature: Perfect Sound/1U/4CH/Digital Amp

High-concerned chemical: None

Impedance: 8ohm, 4ohm

Number of channels: 4

Operating Voltage: 90V~240V

Origin: Mainland China

Product Name: class d power amplifier

Radio function: NO

Recommended use: For surround sound systems

Shell Material: Metal

Usage: Home Theater Background Music System

Use: Home Karaoke

Voltage: 90- 240V

Warranty: 3 Years

Weight: 6 KG

brand name: Sinbosen

model number: K4-600

output power: 600w

place of origin: Guangdong, China

power source: Other

the body material: Metal

warranty: 3 years

Thank you for visiting my store, If you see that the shipping fee is so high, please don't worry about it, as different country has different shipping fee, and it is hard for us to show the accurate shipping fee on the link, so it is better for you to contact me back via the whatsapp/Facebook/Wechat +86 18075381594. for the real shipping fee, also we can send you more video about the item if you really want it, hope I can offer you the best service with the best price

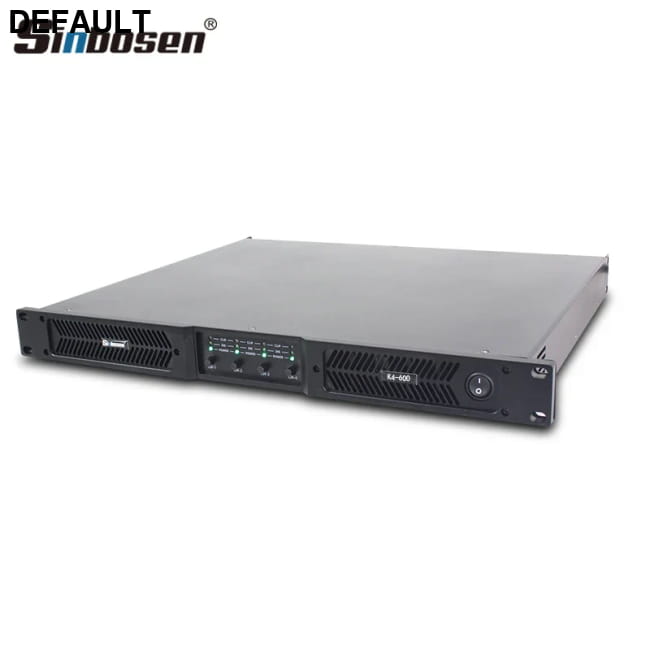

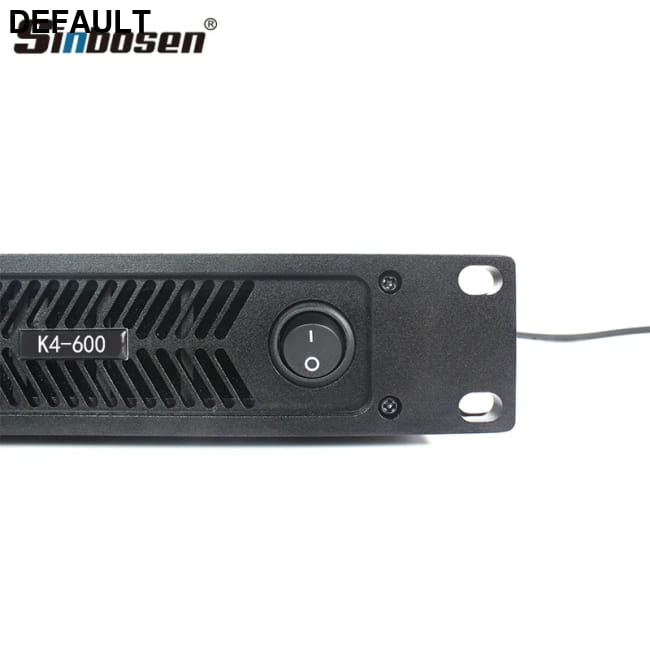

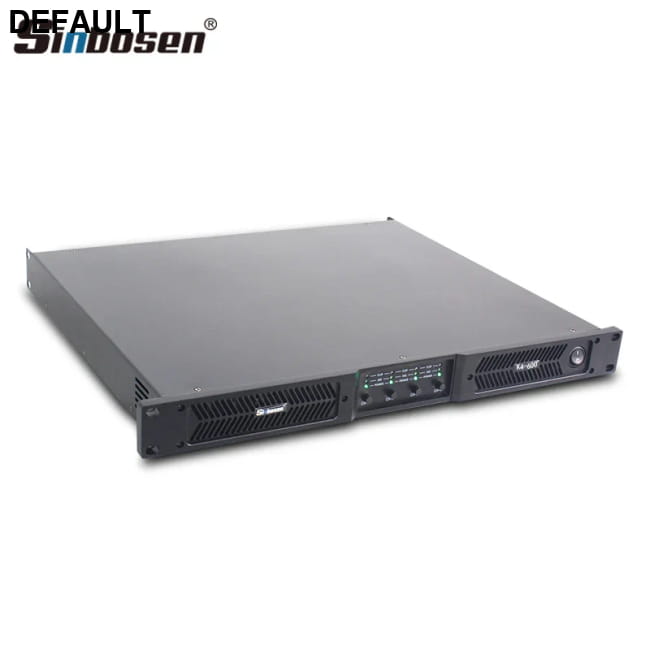

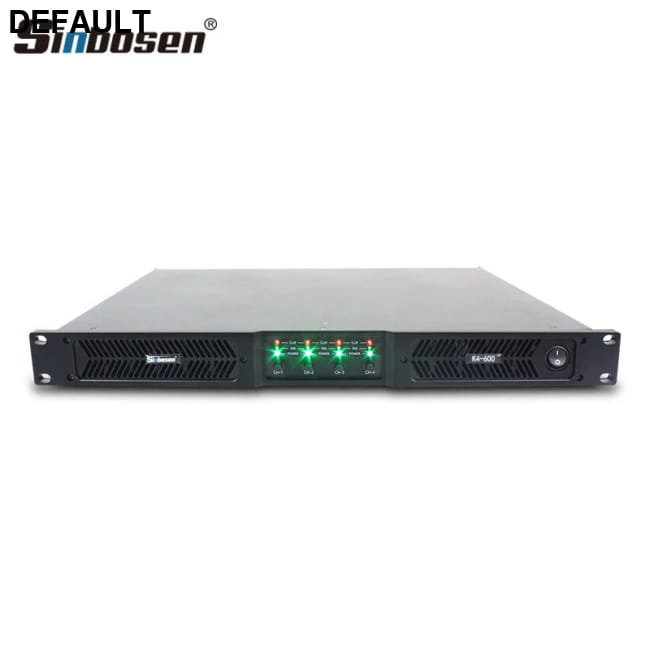

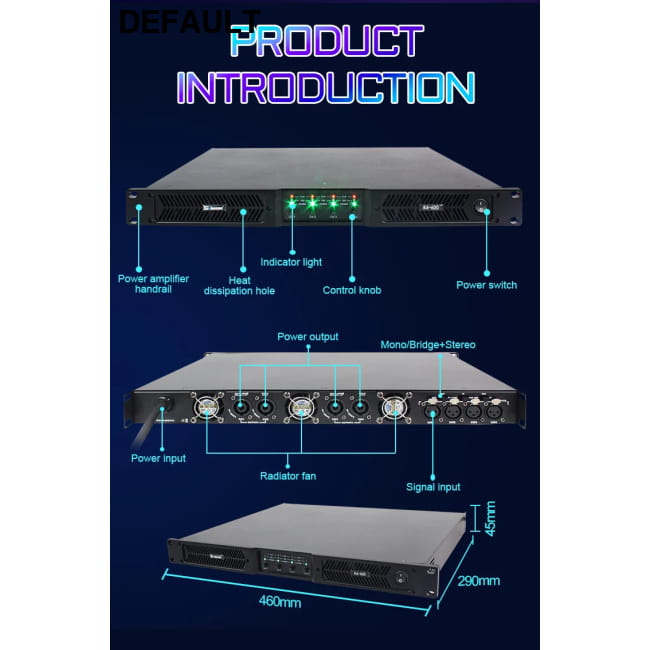

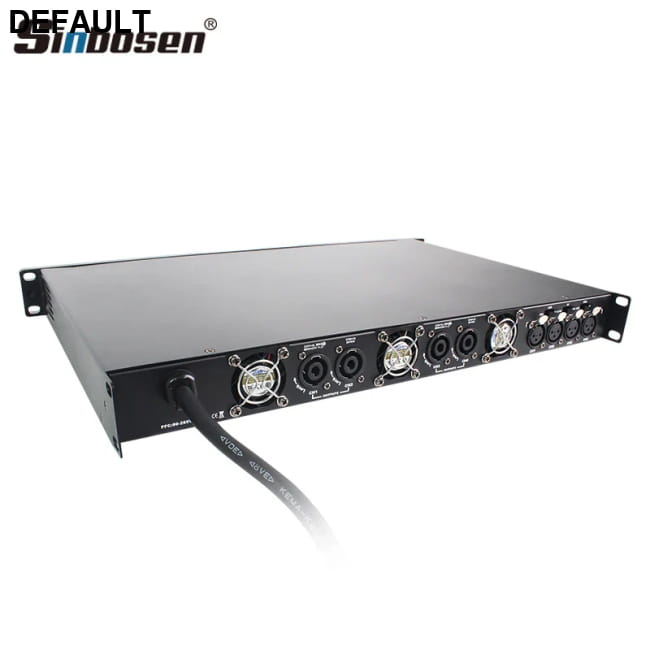

K4-600 audio 1U 4 channel power amplifier professional class d amplifier

Product Paramenters

Model	K4-450	K4-600	K4-800	K4-1000	K4-1400	K4-1700
8Ω Stereo Power:	4 x 4500w	4 x 600w	4 x 800w	4 x 1000W	4 x 1400W	4 x 1700W
4Ω Stereo Power:	4 x 700w	4 x 900w	4 x 1200W	4 x 1400W	4 x 2200W	4 x 2800W
8Ω Bridge Power:		2 x 1800w	2 x 2400W	2 x 2800W	2 x 4500W	2 x 5000W
4Ω Bridge Power:		2 x 2200w	2 x 3100W	2 x 3500W	2 x 5500W	2 x 6100W
DSP Processor:	No
Signal Noise Ration:	>106dB
Frequency Response:	10Hz-34kHz
Damping coefficient:	>600
Gain (optional):	0.775V/1V/32dB

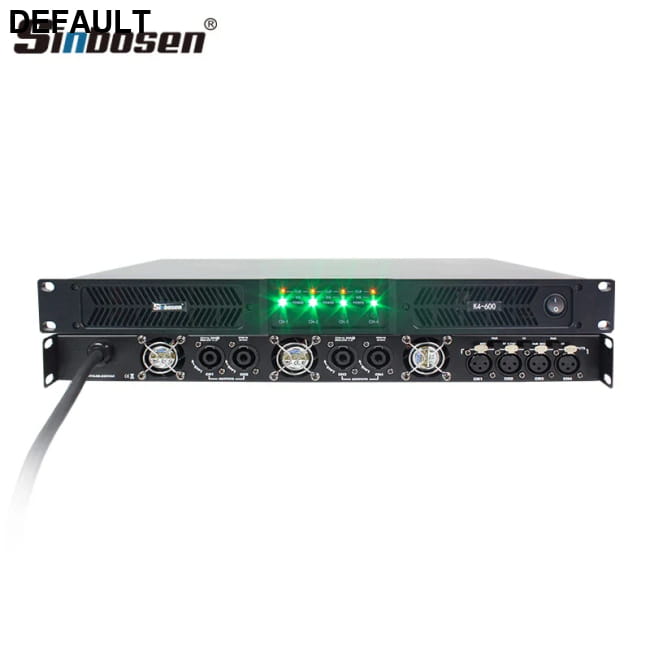

Output socket:	Speakon Connectors(NEUTRIK)
Input socket:	Combo XLR type,3pin(NEUTRIK)
Link socket:	No
Protection:	Short circuit, open circuit, thermal, overload, DC, super audio protection
Power Requirement:	90-265V~50Hz(PFC)
Size(W x H x D):	483x429x44mm
483x429x44mm	5kg	6kg	8kg	9kg	10.5kg	11kg

Digital Amplifier K4-600 Feature:

1. Use Class D power amplifier module. Unique peak clipping limiter and ripple reduction.

2. The perfect protection system effectively reduces the losses caused by improper use.

3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.

4. 1U design, its light weight and very small space occupation rate.

5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.

Attention

Normally rating power should be amp-power x 1,5times comparing power of tops speaker and amp-power x 2times for the subwoofer.
To protect and extend your amplifier's working life, please don't use this amplifier under 2 ohms.
K series amplifier are suit for Middle and High speaker, not good for Subwoofer.
