Car Alarm Remote Control PKE Car Keyless Entry Engine Start
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
Hign-concerned Chemical: None
Item Weight: 520g
Model Name: SQ886-X1
Origin: Mainland China
Special Features: Start/Stop + Auto Start + Keyless Entry
semi_Choice: yes
Things buyers must know:
The equipment must be connected to the correct power source. The acceptable voltage range of this system is 12V. If the voltage is too high or too low, the system will not work properly. Only support 12V gasoline car, key ignition car installation.
Installing this system requires some professional automotive electronics knowledge.Please read the product manual carefully. Please pay attention to output signal cables must be connected to the correct signal according to the "+" or "-" on the product manual. Wrong connections may cause short circuits or burnout of the product.
Host central lock control output is “-” negative trigger, when installing, please test the central lock is triggered in what way, if it is not negative trigger, please increase the relay.
All products have been strictly inspected before leaving the factory to ensure that they are complete and working properly. If you have any problems after receiving the product, please contact us immediately. We will give you the best solution. Good communication is very necessary , we reject all disputes opened without communication.

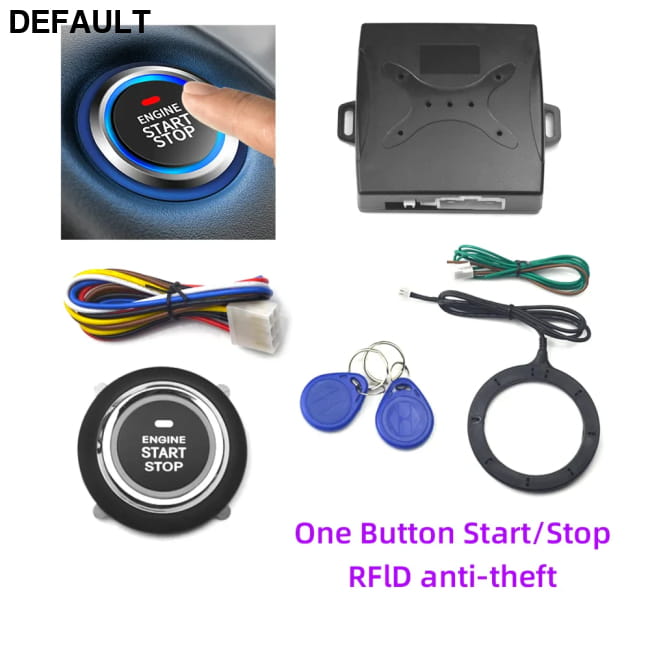

SQ9002
Functionality
1.SECURITY
Ensure the stability and security of the recognizer; Induction distance ≈0-5 cm or so,Tools such as decoders cannot be used for theft; Even remove the anti-theft host or cut off orChange the circuit and the car won't start. Put an end to code cutting, demolition, changeStealing by means such as electric circuits;
2.SMARL
It is easy to use. Just touch the anti-theft coil with the identifier to use the car normally.Get off without operation, intelligent control system will automatically guard. In case of special circumstances do not need to alert, Touch the anti-theft coil with the identifier;
3.STABLE
There is no power supply in the recognizer, which can be used for a long time.
Functional specifications
1.The product has a secret lock function, which automatically locks the engine after 15 seconds of stopping and extinguishing.
2.One key start and one key flameout function, need to step on the brake ignition/flameout.
3.Security: The data in the card can not be changed after written before sealing the card, absolutely ensure the security of the card number.
4.Confidentiality: It can hide the position of self-positioning installation antenna, good concealment 5.Passive: there is no battery in the card, which prevents static electricity and can be used easily.

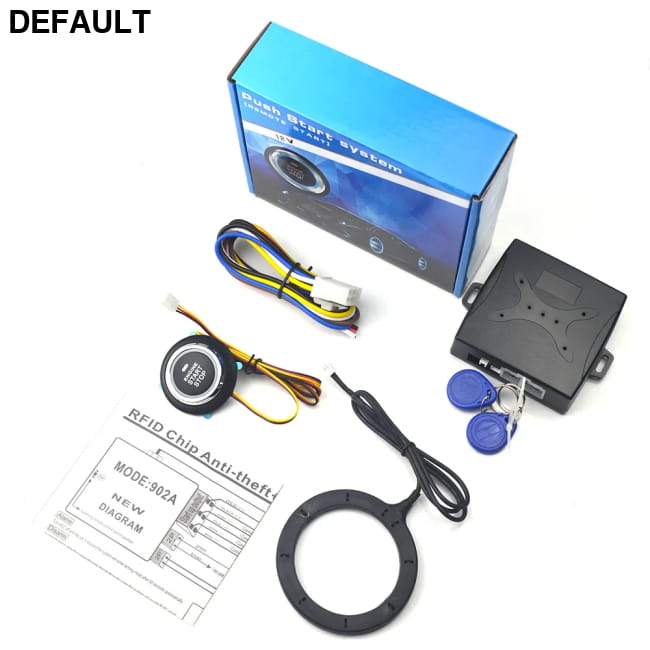

Packing List：
1*Main unit

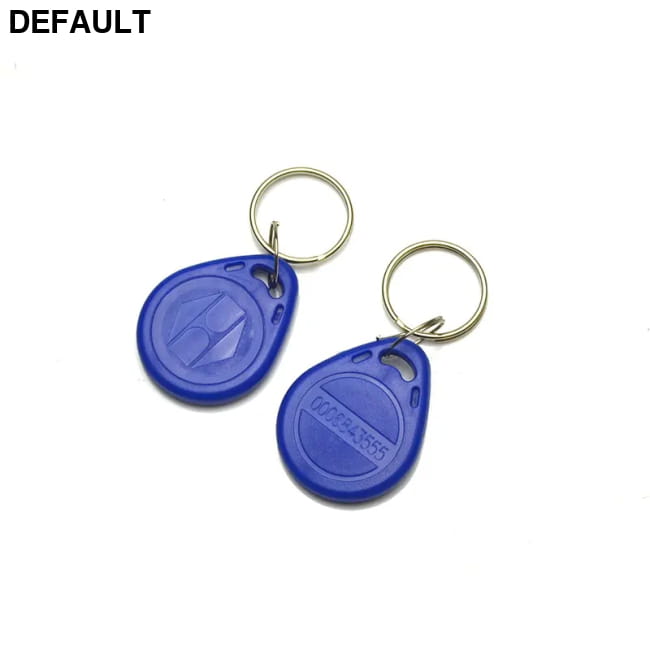

2*ID smart cards
1*Start-up wiring harness
1*Induction coil

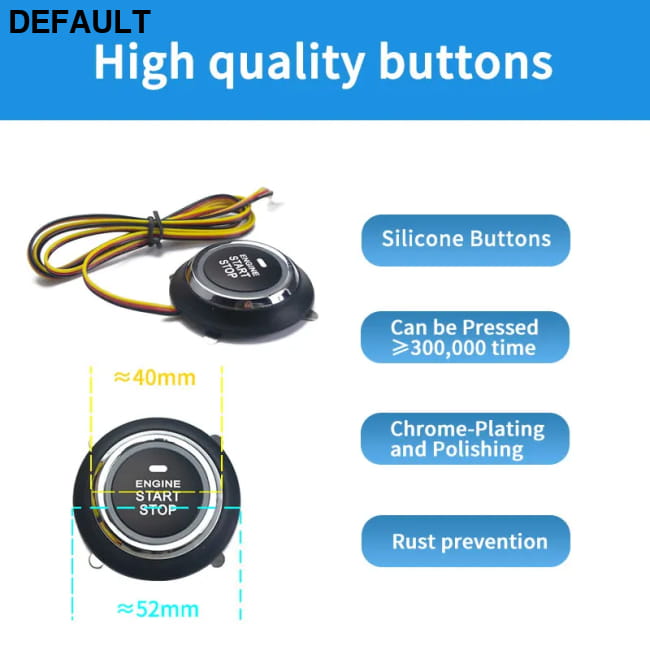

1*Start button
Instruction manual
SQ886-X1
Functionality
- One-key start / stop
- Remote start / stop
- Rear box opened remotely (requires the original car's own tail box motor)
- Remote control car search (horn sounds)
- Remote unlocking / locking
- PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car
- PKE induction temporary shutdown function
- Anti-theft alarm function (Illegal driving door, stepping on the foot brake triggers alarm prompt)
- Motor engine lock function (the vehicle cannot be started in the car after the door is locked)
- Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
- Alarm notification for the original car horn (requires that the original car has a control line, and an alarm horn can be added)
- Emergency reset function
- The remote control is turned on for 10 minutes and the flame is turned off regularly

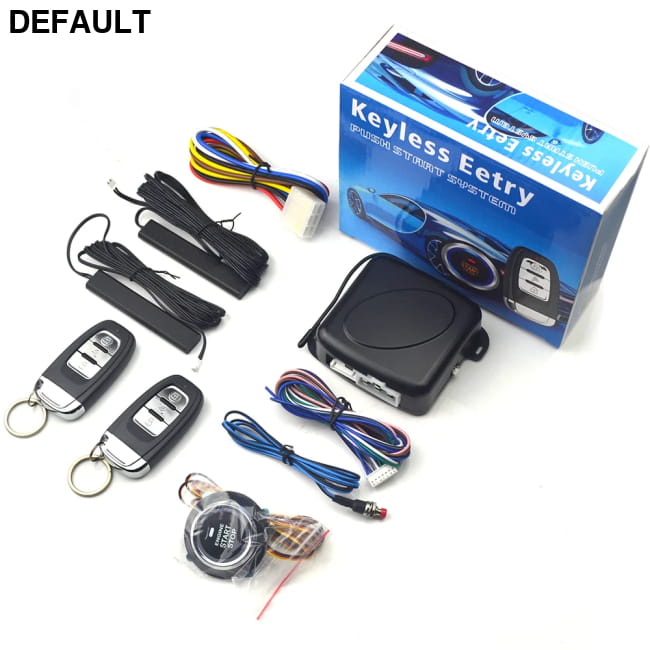

1 * Host
2 * Remote Controller Handle
1 * Start Button
2 * Low-frequency antenna
1 * Start Harness
1 * Test Harness
1 * Restore Button

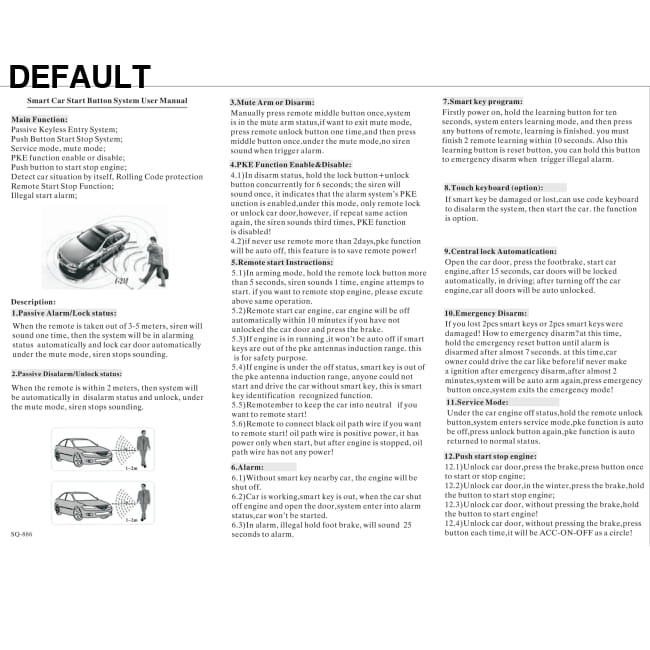

1 * Instruction
